- ASUS
Цена
€252 24 / 493 34 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-x870e-plus-wifi7/
Graphics
1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
*** VGA resolution support depends on processors' or graphic cards' resolution.
CPU's supported
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD X870E Chipset
Expansion slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 Slot
Storage
Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot is not supported
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
Memory type
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*"
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)

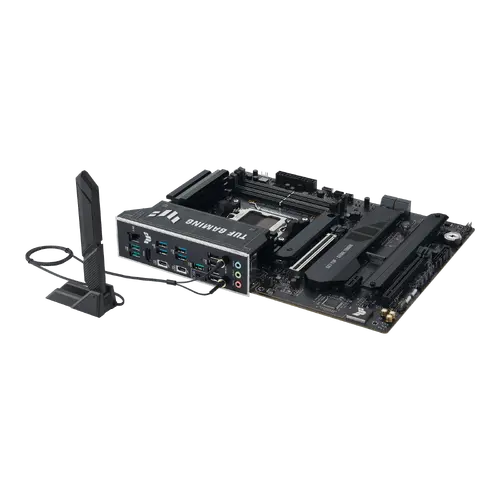

Rear panel I/O
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
USB
Rear USB (Total 13 ports)
2 x USB4® (40Gbps) ports (2 x USB Type-C®)*
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)**
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A.
Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio
Lan
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
Bluetooth® v5.4
Bluetooth
5.4
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
ATX Form Factor
30.5 cm x 24.4 cm
OS
Windows 11
Warranty
36 Months
Данни, подадени от официалния вносител за България.
| Атрибут | Стойност |
|---|---|
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-x870e-plus-wifi7/ |
| Chipset | AMD X870E Chipset |
| OS | Windows 11 |
| Warranty | 36 Months |
| CPU's supported | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Supports AMD Extended Profiles for Overclocking (EXPO™) |
| Memory type | 4 x DIMM slots, max. 256GB, DDR5 |
| Memory type | ASUS Enhanced Memory Profile (AEMP) |
| Memory type | Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*" |
| Form Factor | ATX Form Factor |
| Form Factor | 30.5 cm x 24.4 cm |
| Audio | - Dedicated audio PCB layers |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio | Audio Features |
| Audio | - Audio Shielding |
| Audio | - Premium audio capacitors |
| Audio | - Audio cover |
| Audio | - Unique de-pop circuit |
| Audio | - Impedance sense for front and rear headphone outputs |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
| Audio | - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers |
| Audio | - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) |
| Audio | - Supports up to 32-Bit/192 kHz playback* |
| Audio | * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio |
| Rear panel I/O | 3 x audio jacks |
| Rear panel I/O | 1 x HDMI™ port |
| Rear panel I/O | 1 x BIOS FlashBack™ button |
| Rear panel I/O | 1 x Realtek 2.5Gb Ethernet port |
| Rear panel I/O | 4 x USB 2.0 ports (4 x Type-A) |
| Rear panel I/O | 1 x Wi-Fi Module |
| Rear panel I/O | 3 x USB 10Gbps ports (3 x Type-A) |
| Rear panel I/O | 4 x USB 5Gbps ports (4 x Type-A) |
| Rear panel I/O | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| LAN | TUF LANGuard |
| Expansion Slots | 1 x PCIe 3.0 x1 slot |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| Expansion Slots | AMD Ryzen™ 8000 Series Desktop Processors |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot |
| Expansion Slots | AMD X870E Chipset |
| Wireless | Wi-Fi 7 |
| Wireless | Supports 2.4/5/6GHz frequency band |
| Wireless | Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate |
| Wireless | 2x2 Wi-Fi 7 (802.11be) |
| Wireless | Bluetooth® v5.4 |
| Graphics | 1 x HDMI™ port** |
| Graphics | 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** |
| Graphics | * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. |
| Graphics | ** Supports 4K@60Hz as specified in HDMI 2.1. |
| Graphics | *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. |
| Graphics | *** VGA resolution support depends on processors' or graphic cards' resolution. |
| Features | ASUS EZ DIY |
| Features | ASUS Q-Design |
| Features | ASUS Thermal Solution |
| Features | - Overvoltage Protection |
| Features | - Stainless-Steel Back I/O |
| Features | - Q-DIMM |
| Features | - Q-Slot |
| Features | Aura Sync |
| Features | - Addressable Gen 2 headers |
| Features | - VRM heatsink design |
| Features | - BIOS FlashBack™ button |
| Features | - BIOS FlashBack™ LED |
| Features | ASUS TUF PROTECTION |
| Features | - ESD Guards |
| Features | - TUF LANGuard |
| Features | - M.2 Q-Latch |
| Features | - ProCool |
| Features | - Pre-mounted I/O shield |
| Features | - SafeSlot |
| Features | - SafeDIMM |
| Features | - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| Features | - Q-Dashboard |
| Features | - DIGI+ VRM (- Digital power design with SPS) |
| Features | - M.2 heatsinks |
| Features | Front Panel USB 20Gbps with PD Fast Charge Support |
| Features | - Support: up to 30W fast charging and USB Wattage Watcher |
| Features | - Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A |
| Features | - Compatible with PD3.0 |
| Features | - Q-Release Slim (with PCIe SafeSlot)- Q-Antenna |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| I/O | 3 x audio jacks |
| I/O | 1 x HDMI™ port |
| I/O | 1 x BIOS FlashBack™ button |
| I/O | 1 x Realtek 2.5Gb Ethernet port |
| I/O | 4 x USB 2.0 ports (4 x Type-A) |
| I/O | 1 x Wi-Fi Module |
| I/O | 3 x USB 10Gbps ports (3 x Type-A) |
| I/O | 4 x USB 5Gbps ports (4 x Type-A) |
| I/O | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) |
| Storage | 4 x SATA 6Gb/s ports |
| Storage | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| Storage | AMD Ryzen™ 8000 Series Desktop Processors |
| Storage | M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) |
| Storage | M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| Storage | M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| Storage | AMD RAIDXpert2 Technology |
| Storage | Ryzen™ 9000 Series Processors: RAID 0/1/5/10 |
| Storage | Ryzen™ 8000 Series Processors: RAID 0/1 |
| Storage | Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Storage | AMD X870 Chipset |
| Storage | Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports |
| Storage | M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) |
| Storage | M.2_2 slot is not supported |
| Storage | M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| Bluetooth | 5.4 |
| Connectors | 1 x chassis intrusion header |
| Connectors | Fan and Cooling related |
| Connectors | 1 x 4-pin CPU Fan header |
| Connectors | Power related |
| Connectors | 1 x 24-pin Main Power connector |
| Connectors | Storage related |
| Connectors | 4 x SATA 6Gb/s ports |
| Connectors | USB |
| Connectors | Miscellaneous |
| Connectors | 1 x Clear CMOS header |
| Connectors | 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Connectors | 3 x Addressable Gen 2 headers |
| Connectors | 1 x Thermal Sensor header |
| Connectors | 1 x 4-pin CPU OPT Fan header |
| Connectors | 1 x 4-pin AIO Pump header |
| Connectors | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| Connectors | 4 x 4-pin Chassis Fan headers |
| Connectors | 2 x 8-pin +12V CPU Power connectors |
| Connectors | 1 x Front Panel Audio header (F_AUDIO) |
| Connectors | 1 x 10-1 pin Front System Panel header |
| Connectors | 4 x M.2 slots (Key M) |
| Connectors | 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge) |
| USB | Front USB (Total 7 ports) |
| USB | 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| USB | 4 x USB 2.0 ports (4 x Type-A) |
| USB | * USB Type-C® power delivery output: max. 5V/3A |
| USB | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| USB | 3 x USB 10Gbps ports (3 x Type-A) |
| USB | 4 x USB 5Gbps ports (4 x Type-A) |
| USB | Rear USB (Total 13 ports) |
| USB | 2 x USB4® (40Gbps) ports (2 x USB Type-C®)* |
| USB | 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)** |
| USB | ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A. |
| Тегло | 0.00кг |
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
| Атрибут | Стойност |
|---|---|
| Сокет | AM5 |
| Форм фактор | ATX |
| Чипсет | AMD X870E |
| Тип памет | DDR5 |
| Слотове за памет (count) | 4 |
| Максимална памет (GB) | 256 |
| M.2 слотове (count) | 4 |
| SATA портове (count) | 4 |
| PCIe x16 слотове (count) | 2 |
| Вграден Wi-Fi | Wi-Fi 7 |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове (count) | 2 |
| RGB подсветка | Да |
| Тегло | 0.00кг |

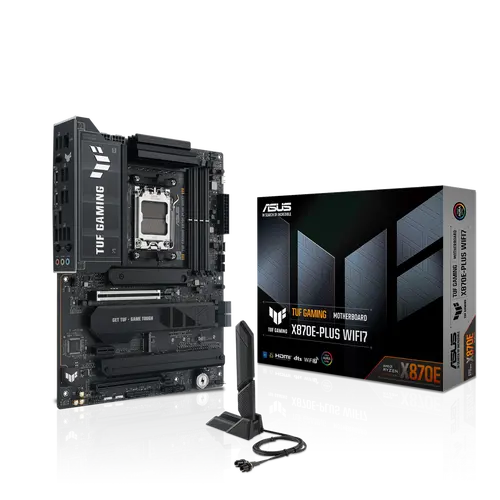

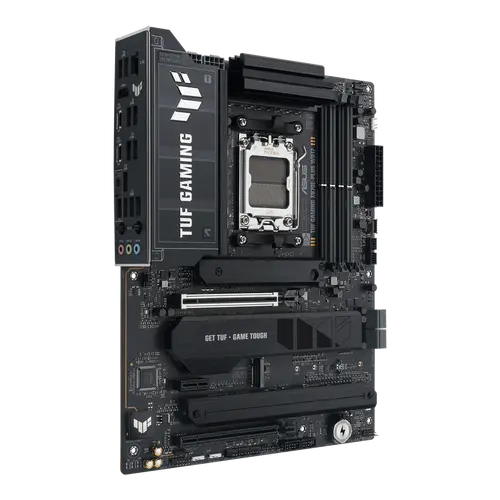

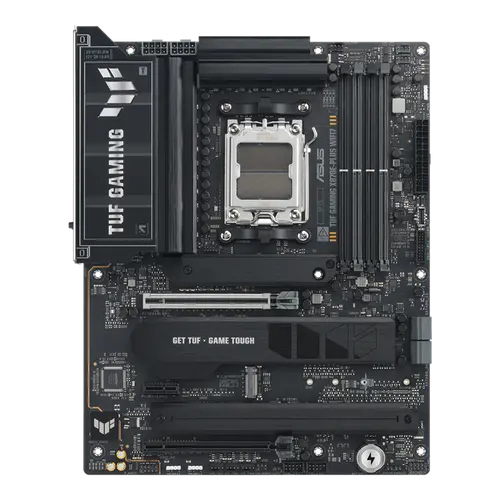

Дънна платка ASUS TUF GAMING X870E-PLUS WIFI7 – AMD AM5 с военна надеждност
Създадена за геймъри и ентусиасти, които изискват безупречна стабилност, ASUS TUF GAMING X870E-PLUS WIFI7 съчетава компоненти с военно качество и модерна свързаност. Насладете се на поддръжка на бърза DDR5 памет, PCIe 5.0 за ново поколение графични карти и вграден Wi-Fi 7 за ултраниска латентност.
Ключови Предимства
- Военна издръжливост — TUF компоненти, подсилени PCIe слотове и I/O панел от неръждаема стомана гарантират дълготрайна надеждност.
- Свързаност от ново поколение — Wi-Fi 7, 2.5Gb Ethernet и USB-C 20Gbps портове осигуряват светкавично бърз трансфер на данни.
- Платформа AMD AM5 — Поддържа най-новите AMD Ryzen процесори с DDR5 памет и PCIe 5.0 за максимална производителност.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Форм фактор | ATX |
| Чипсет | AMD X870E |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 256 GB |
| M.2 слотове | 4 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Wi-Fi 7 |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 2 |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка ASUS TUF GAMING X870E-PLUS WIFI7
- Ръководство за потребителя
- 2 x SATA кабела
- M.2 гумени пакети
- Wi-Fi антена
- I/O панел
- Q-Конектор
Запишете се за нашият Бюлетин
Запиши се за нашия онлайн бюлетин и научи първи за промоционални и нови продукти.
Методи за Плащане
- Наложен Платеж
- Кредитна/Дебитна Карта
- Банков Превод
- На изплащане ПБ Лични Финанси
